XCMG XE250C GM Hydraulic Excavator
The XCMG XE250C GM Hydraulic Excavator is a heavy-duty crawler excavator designed for demanding excavation, earthmoving and construction applications. With an operating weight of 24,500 kg, an Isuzu 6-cylinder turbocharged engine, and a rated engine power of 174.7 HP at 2,100 rpm, the XE250C GM combines high digging capability with a substantial working range.
The machine is equipped with a 1.2 m³ standard bucket, with the brochure also specifying a 1.4 m³ GP bucket option. Its hydraulic system uses two variable displacement axial piston pumps, while the machine’s digging force, arm crowd force and drawbar pull are specified for heavy-duty working conditions.
The XCMG XE250C GM is therefore suited to projects where excavation depth, digging force, working reach and machine durability are important considerations.
XCMG XE250C GM – Key Specifications
The following specifications are taken directly from the supplied XCMG XE250C GM brochure:
| Specification | XCMG XE250C GM |
|---|---|
| Machine Type | Hydraulic Excavator |
| Operating Weight | 24,500 kg |
| Engine Make | Isuzu |
| Engine Model | ISUZU CC-6BG1TRP |
| Engine Type | 6-Cylinder, Turbocharged, Air-to-Air Intercooler |
| Rated Power | 174.7 HP @ 2,100 rpm |
| Engine Displacement | 6.5 L |
| Maximum Torque | 65 kgf.m @ 1,800 rpm |
| Bucket Capacity | 1.2 m³ / 1.4 m³ GP option |
| Standard Boom | 6 m |
| Standard Arm | 2.96 m |
| Maximum Digging Height | 9,545 mm |
| Maximum Dumping Height | 6,725 mm |
| Maximum Digging Depth | 6,960 mm |
| Maximum Digging Radius | 10,240 mm |
| Minimum Swing Radius | 3,850 mm |
| Maximum Drawbar Pull | 205 kN |
| Bucket Digging Force | 185 kN |
| Arm Crowd Force | 129 kN |
| Travel Speed | 6 km/h |
| Swing Speed | 12.1 rpm |
| Gradeability | ≤35° |
| Track Shoe Width | 600 mm |
Powerful 174.7 HP Isuzu Engine
Isuzu CC-6BG1TRP Engine
The XCMG XE250C GM is powered by an ISUZU CC-6BG1TRP engine. The brochure identifies it as a 6-cylinder, turbocharged engine with an air-to-air intercooler.
The engine delivers:
- Rated Power: 174.7 HP @ 2,100 rpm
- Displacement: 6.5 litres
- Maximum Torque: 65 kgf.m @ 1,800 rpm
- Batteries: 2 × 12V
This engine configuration provides the power source for the machine’s hydraulic and travel systems during demanding excavation operations.
Why Engine Power Matters in a Heavy Excavator
Engine power is an important factor in heavy excavation because the engine supplies the energy required by the hydraulic system, travel system and other machine functions. The XE250C GM’s 174.7 HP rated power is paired with a hydraulic system designed for high-flow operation and substantial digging forces.
Advanced Hydraulic System for Heavy-Duty Excavation
Two Variable Displacement Axial Piston Pumps
The hydraulic system of the XE250C GM uses two variable displacement axial piston pumps with a combined maximum flow specification of 2 × 246 LPM.
The brochure specifies:
- Main Pump: 2 variable displacement axial piston pumps
- Maximum Flow: 2 × 246 LPM
- Pilot Pump: 1 gear pump
- Implement Circuit: 34.4 / 37 MPa
- Travel Circuit: 34.4 MPa
- Pilot Circuit: 3.9 MPa
- Swing Circuit: 25 MPa
This hydraulic configuration supports the excavator’s boom, arm, bucket, swing and travel functions.
Hydraulic Performance for Excavation Applications
Hydraulic performance is particularly important when excavators are required to work through hard soil, rock, construction material or other demanding ground conditions. The XE250C GM brochure specifies a bucket digging force of 185 kN and an arm crowd force of 129 kN.
The machine also provides a maximum drawbar pull of 205 kN, supporting its travel capability on challenging working surfaces.
XCMG XE250C GM Digging Performance
The XE250C GM is designed with a substantial working range for excavation and material-handling operations.
Working Range of XE250C GM
According to the brochure:
- Maximum Digging Height: 9,545 mm
- Maximum Dumping Height: 6,725 mm
- Maximum Digging Depth: 6,960 mm
- Maximum Digging Depth at 8 ft Level: 6,700 mm
- Vertical Digging Depth: 6,090 mm
- Maximum Digging Radius: 10,240 mm
- Minimum Swing Radius: 3,850 mm
These dimensions are presented in the working-range section of the manufacturer’s brochure.
10.24 Metre Maximum Digging Radius
One of the notable working-range specifications of the XE250C GM is its 10,240 mm maximum digging radius. A long digging radius can be useful for excavation operations where operators need to reach a greater distance from the machine’s working position.
The brochure’s working-range diagram on page 2 visually illustrates the machine’s digging envelope and the corresponding height, depth and radius measurements.
Heavy-Duty Undercarriage
600 mm Track Shoes
The XE250C GM uses a crawler undercarriage designed for heavy excavation work.
The brochure specifies:
- Track Shoes: 49
- Upper Rollers: 2
- Lower Rollers: 9
- Track Guards: 2
- Track Shoe Width: 600 mm
The 600 mm track shoe width forms part of the machine’s crawler configuration for working on construction and excavation sites.
XE250C GM Excavator Travel and Swing Performance
The XCMG XE250C GM has a specified travel speed of 6 km/h and swing speed of 12.1 rpm.
Its brochure also specifies:
- Gradeability: ≤35°
- Maximum Drawbar Pull: 205 kN
- Bucket Digging Force: 185 kN
- Arm Crowd Force: 129 kN
These performance specifications are particularly relevant when evaluating an excavator for earthmoving projects that involve excavation, repositioning and material handling.
XE250C GM Attachments and Bucket Options
Standard Boom and Arm
The brochure specifies the following attachment configuration:
- Standard Boom: 6 m
- Standard Arm: 2.96 m
- Optional Arm: 2.5 m
- Standard Bucket: 1.2 m³
- Bucket Option: HD 1.4 m³ GP
- Travel Device: 2 × 5 L
This gives the XE250C GM different configuration possibilities depending on the equipment requirements and regional specifications.
1.2 m³ to 1.4 m³ Bucket Configuration

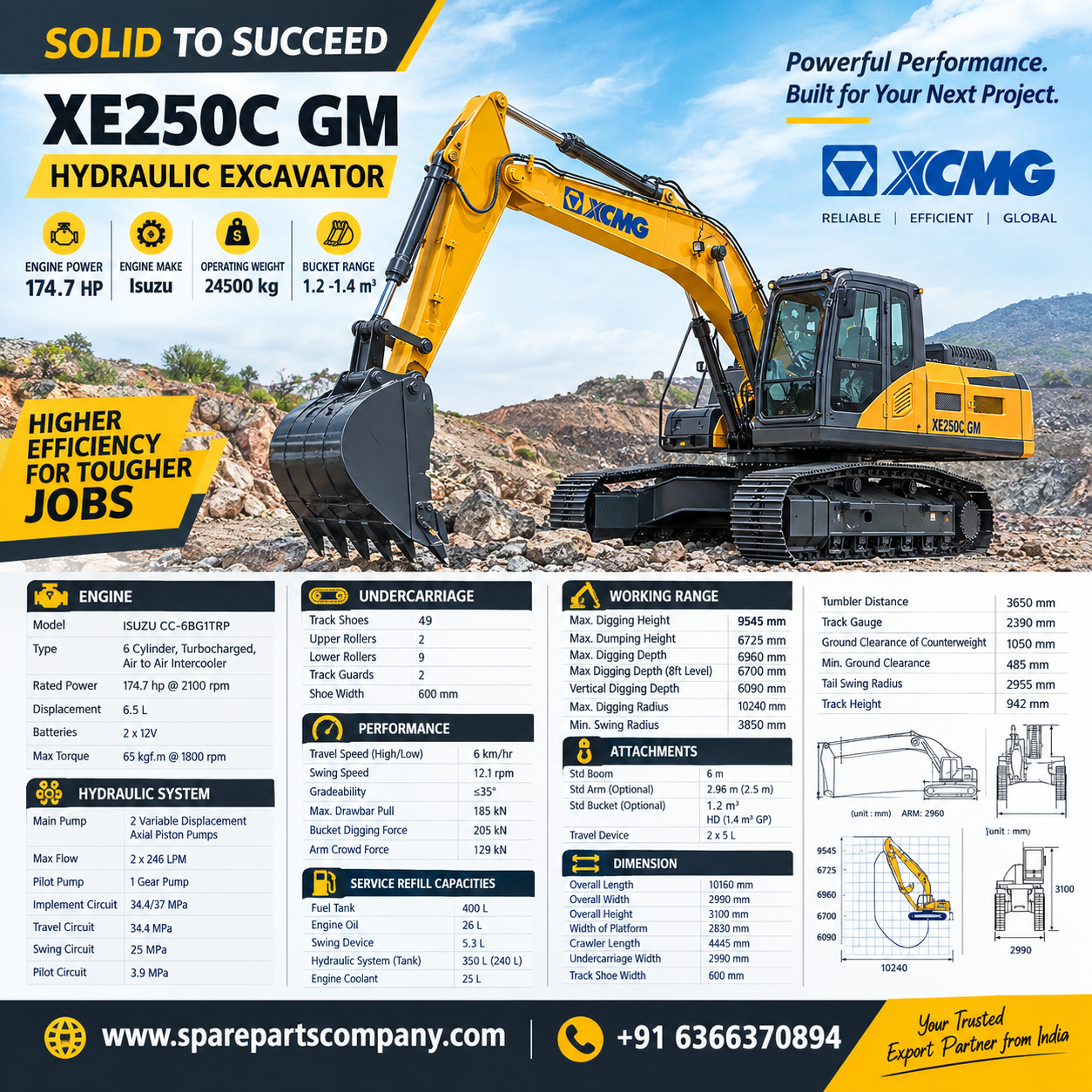

The supplied marketing artwork highlights a 1.2–1.4 m³ bucket range, while the detailed brochure identifies the standard bucket as 1.2 m³ and lists an HD 1.4 m³ GP configuration. Customers should confirm the exact bucket configuration supplied with the machine before purchase.
XE250C GM Service Refill Capacities
The brochure provides the following service refill capacities:
| Service Capacity | Specification |
|---|---|
| Fuel Tank | 400 L |
| Engine Oil | 26 L |
| Engine Coolant | 25 L |
| Swing Device | 5.3 L |
| Hydraulic System Tank | 350 L (240 L) |
| Travel Device | 2 × 5 L |
These capacities are listed in the manufacturer’s technical specification section.
Understanding service capacities is important when planning routine machine maintenance, fluid servicing and operating requirements for heavy construction equipment.
XCMG XE250C GM Dimensions
The XE250C GM has an overall length of 10,160 mm, overall width of 2,990 mm and overall height of 3,100 mm.
Complete Machine Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 10,160 mm |
| Overall Width | 2,990 mm |
| Overall Height | 3,100 mm |
| Width of Platform | 2,830 mm |
| Crawler Length | 4,445 mm |
| Undercarriage Width | 2,990 mm |
| Track Shoe Width | 600 mm |
| Tumbler Distance | 3,650 mm |
| Track Gauge | 2,390 mm |
| Ground Clearance of Counterweight | 1,050 mm |
| Minimum Ground Clearance | 485 mm |
| Tail Swing Radius | 2,955 mm |
| Track Height | 942 mm |
Applications of the XCMG XE250C GM Hydraulic Excavator
With its 24.5-ton operating weight, 174.7 HP engine, substantial digging range and high specified digging forces, the XE250C GM can be considered for a range of heavy excavation and construction applications.
Earthmoving and Excavation
The machine’s digging depth, digging radius, bucket capacity and hydraulic digging force make it suitable for general excavation and earthmoving requirements.
Construction Site Excavation
Large construction projects often require equipment capable of moving significant quantities of soil and material. The XE250C GM’s 24,500 kg operating weight and 1.2 m³ standard bucket configuration provide a specification profile for heavy construction excavation.
Rock and Tough Ground Work
The brochure’s performance specifications include 185 kN bucket digging force, 129 kN arm crowd force and 205 kN maximum drawbar pull. These specifications are relevant when evaluating equipment for demanding excavation environments.
Material Handling and Site Development
The machine’s maximum dumping height of 6,725 mm and maximum digging radius of 10,240 mm provide a substantial working envelope for excavation and material-handling activities.
Why Consider the XCMG XE250C GM for Heavy Excavation?
The XE250C GM specification sheet brings together several characteristics expected in a heavy crawler excavator:
1. High Engine Power
The machine is powered by a 174.7 HP Isuzu engine with 6.5 L displacement.
2. Heavy Operating Weight
With an operating weight of 24,500 kg, the machine belongs to the heavy crawler excavator category.
3. High Hydraulic Flow
Its hydraulic system uses two variable displacement axial piston pumps with a specified maximum flow of 2 × 246 LPM.
4. Strong Digging Performance
The brochure specifies 185 kN bucket digging force and 129 kN arm crowd force.
5. Extensive Working Range
The excavator provides a maximum digging radius of 10,240 mm and maximum digging height of 9,545 mm.
6. Heavy-Duty Crawler Configuration
The machine uses 600 mm track shoes, with 49 track shoes, 2 upper rollers, 9 lower rollers and 2 track guards as specified in the brochure.
XCMG XE250C GM vs. Different Excavation Requirements
When selecting a hydraulic excavator, buyers should consider more than engine horsepower alone. Important parameters include:
- Operating weight
- Engine power
- Hydraulic flow
- Bucket capacity
- Digging force
- Digging depth
- Digging radius
- Dumping height
- Track width
- Travel performance
- Attachment configuration
- Service capacities
The XE250C GM brochure provides specifications across all these major categories, allowing equipment buyers and project managers to evaluate the machine against their particular site requirements.
XCMG XE250C GM: Technical Specification Summary
The XCMG XE250C GM Hydraulic Excavator combines a 174.7 HP Isuzu engine, 24,500 kg operating weight, variable displacement hydraulic pumps, a 1.2 m³ standard bucket, and a working range extending to a 10,240 mm maximum digging radius.
Its specified performance includes 205 kN maximum drawbar pull, 185 kN bucket digging force, 129 kN arm crowd force, 6 km/h travel speed and 12.1 rpm swing speed.
For projects requiring a heavy crawler excavator with a substantial working range and high specified digging forces, these technical parameters provide the key information required for initial equipment evaluation.
Frequently Asked Questions About XCMG XE250C GM
What is the operating weight of the XCMG XE250C GM?
The XCMG XE250C GM has a specified operating weight of 24,500 kg.
What engine is used in the XCMG XE250C GM?
The machine uses an ISUZU CC-6BG1TRP, a 6-cylinder, turbocharged, air-to-air intercooled engine.
What is the horsepower of the XE250C GM?
The rated engine power is 174.7 HP at 2,100 rpm.
What is the bucket capacity of the XE250C GM?
The brochure specifies a 1.2 m³ standard bucket, with an HD 1.4 m³ GP bucket option.
What is the maximum digging depth?
The maximum digging depth specified in the brochure is 6,960 mm. The maximum digging depth at the 8-ft level is 6,700 mm.
What is the maximum digging radius?
The maximum digging radius is 10,240 mm.
What is the maximum digging height?
The maximum digging height is 9,545 mm.
What is the track shoe width?
The specified track shoe width is 600 mm.
What is the travel speed of the XE250C GM?
The brochure specifies a travel speed of 6 km/h.
What is the fuel tank capacity?
The specified fuel tank capacity is 400 litres.
Conclusion: XCMG XE250C GM Hydraulic Excavator
The XCMG XE250C GM Hydraulic Excavator is a heavy crawler excavator specified with a 174.7 HP Isuzu engine, 24,500 kg operating weight, 1.2 m³ standard bucket, powerful hydraulic system and extensive digging range.
Its combination of 205 kN maximum drawbar pull, 185 kN bucket digging force, 129 kN arm crowd force, 10,240 mm maximum digging radius and 6,960 mm maximum digging depth makes its technical specification particularly relevant for demanding excavation and earthmoving applications.
The detailed dimensions, hydraulic specifications, undercarriage information, service capacities and working-range diagrams are provided in the supplied XCMG XE250C GM product brochure, while the manufacturer notes that specifications and standard/optional fittings can vary according to regional or country-specific requirements.
